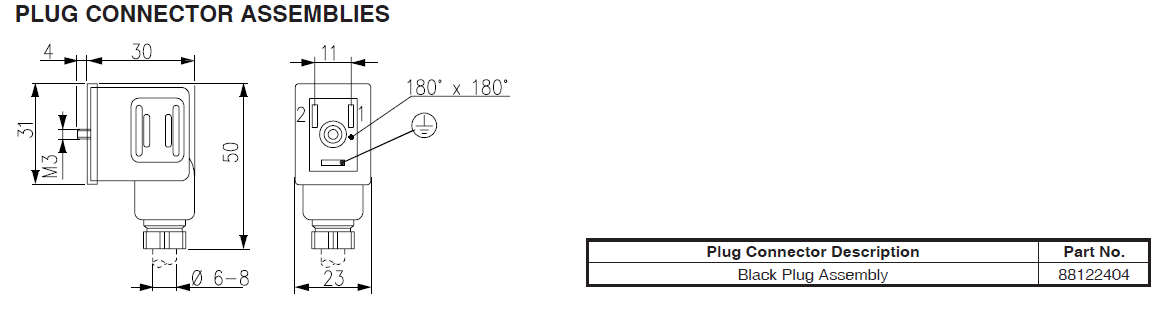

ASCO电磁阀标准电压/YA系列电磁阀尺寸图
FEATURES
? Solenoid pilot
? DIN plug-in solenoid indicator light
? Unlubricated or lubricated service
? In-line or manifold mounted
STANDARD VOLTAGES
DC (=) : 24V
AC (~) : 110V-230V/50-60Hz
TECHNICAL DATA (YA)
Valve Data English Metric
Cv 1/8 = 1.0 1/4 = 1.0 1/8 = 1.0 1/4 = 1.0
Flow Capacity 46 SCFM upstream pressure to atmosphere @ 80 PSIG 985 NI/m @6 bar upstream/5 bar downstream
Main Valve Operating Pressure Range 28" HG. Vacuum to 150 PSIG Vacuum to 10 bar
Pilot Pressure Range: Internal and External 14.5 to 150 PSIG 1 to 10 bar
Temperature Range: Solenoid Pilot (ambient) -10°F to +115°F -23°C to +46°C
# Of Stations Manifold Kit No # Of Stations Manifold Kit No
G 1/4 G 1/4
2 Stations 106-1096 8 Stations 106-1102
3 Stations 106-1097 9 Stations 106-1103
4 Stations 106-1098 10 Stations 106-1104
5 Stations 106-1099 11 Stations 106-1105
6 Stations 106-1100 12 Stations 106-1106
7 Stations 106-1101 Adaptor Kit Order
(1) adaptor kit for each station on the manifold Includes all seals and screw
110/50-60 VAC 230/50-60 VAC 24 VDC
43005069 43004886 43004869
ASCO电磁阀标准电压/YA系列电磁阀尺寸图
